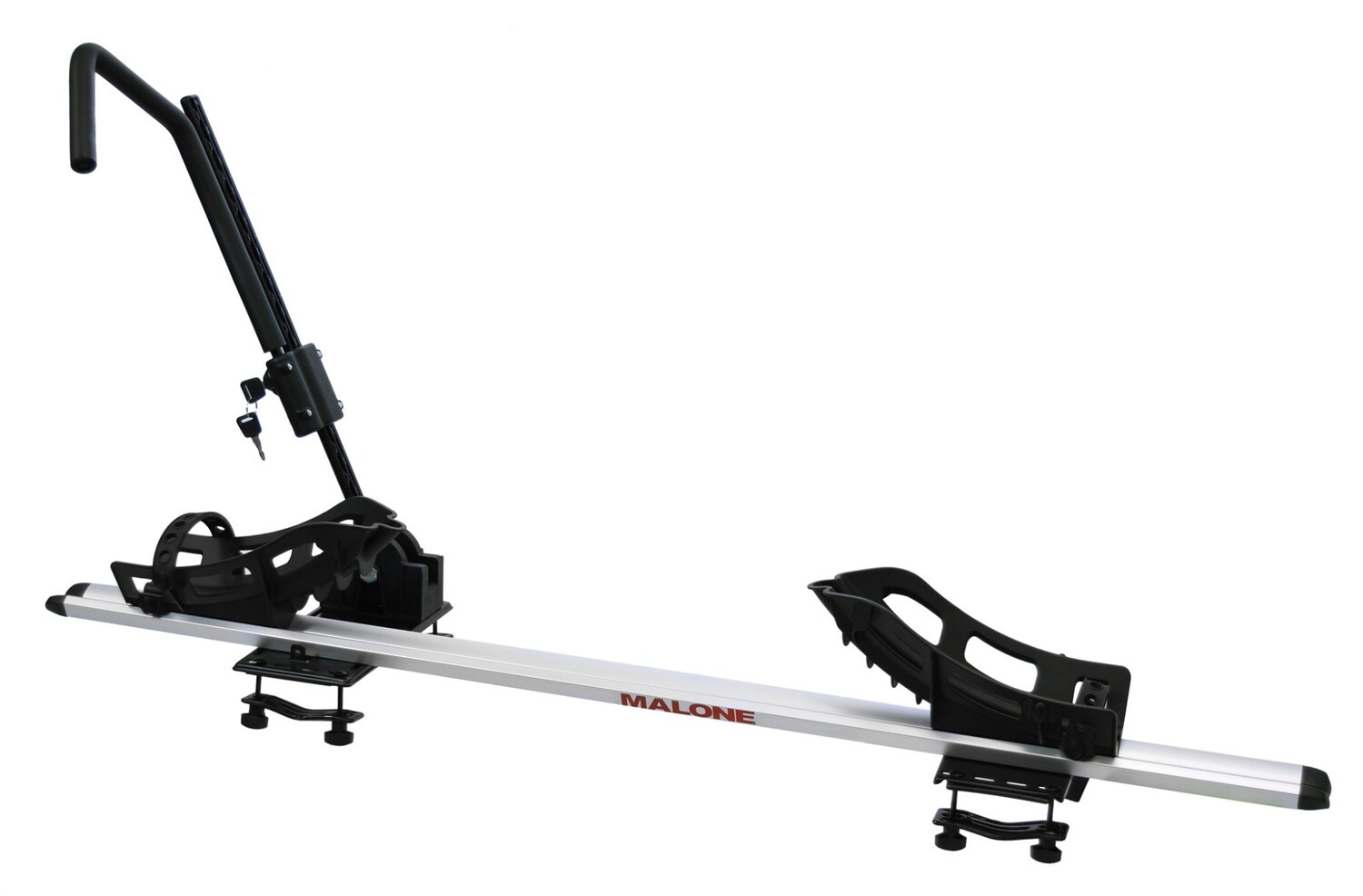

Pilot TC LT - Long Tray (Trailer Only)

---

Features:

• 51” tray length fits most car top applications
• Compatible with disk brake, thru-axles and unconventional frame designs
• Key locking ratchet arm to deter theft
• Adjustable wheel holders accommodate multiple wheel sizes and tire widths
• Universal fit brackets are compatible with most factory, aero, square and round load bars
• Aluminum and steel construction

---

Specifications:

• Load Capacity: One bike x 33 lb
• Ratchet locking with 2 keys
• Weight: 10 lb
• Fits 20" to 29" wheels and up to 5”wide fat tires
• Dimensions: 51" x 12" x 6"
• Lifetime Limited Warranty
• Compatible with most load bars up to 2" tall x 3.5" wide (use 85mm bolts provided)

Note: Not compatible with tandem or long wheel base recumbent bikes. Some assembly required.

---

Installation:

• Please review instructions and register your warranty prior to first time use.

• Note: Mounting bolts may make slight contact with the outer edge of some aftermarket cross bars. This normally will not inhibit installation.

---

What’s In The Box:

• (1) 51" Aluminum Curved Wheel Tray
• (1) Front Ratchet Arm and Base Assembly
• (1) Rear Plate Assembly
• (3) Universal Fit Mounting Brackets
• (2) Wheel Cradles with TPU Wheel Straps
• (2) Keys
• (2) Tray End Caps
• (1) Hardware Kit (Universal Adapters & T-Knobs)
• (8) M6 x 1mm zinc coated 60mm Mounting Bolts
• (8) M6 x 1mm zinc coated 85mm Mounting Bolts
• (1) Instruction Manual
