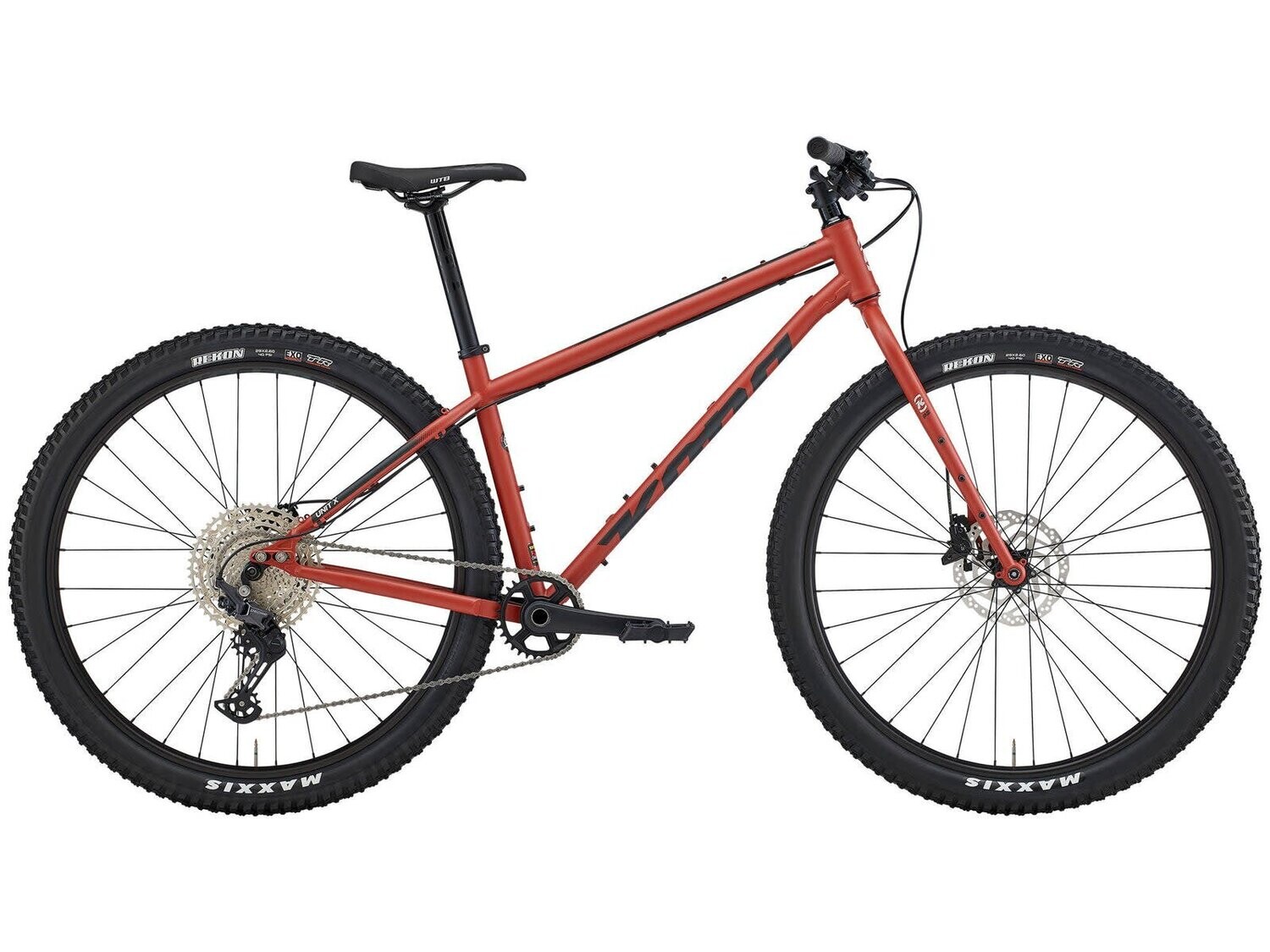

The Unit X has become a cult favorite among die-hard Kona fans. Maybe it’s the Cromoly frame. Maybe it’s the fact that it’s a bikepacking monster, or its well-geared 12-speed drivetrain, or modular dropouts which give you the ability to run it as a single speed if that’s your thing. Maybe it’s because the rigid fork makes it that much more of a classic. We may never know why the Unit X is such a popular bike, but we can only guess it’s because it is one of the most practical machines in our lineup.
| FRAME MATERIAL | Reynolds 520 Butted Cromoly |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | Kona Plus Fork 110mm spacing |
| CRANKARMS | Prowheel 12spd |
| CHAINRINGS | 32t |
| B/B | Prowheel 73mm |
| PEDALS | n/a |
| CHAIN | Shimano Deore 12spd |
| CASSETTE | Shimano Deore 10-51t 12spd |
| CHAINGUIDE | n/a |
| F/D | n/a |
| R/D | Shimano Deore |
| SHIFTERS | Shimano Deore 12spd |
| BRAKE CALIPERS | Shimano MT410 Hydraulic |
| FRONT BRAKE ROTOR | Shimano RT10 180mm (centerlock) |
| REAR BRAKE ROTOR | Shimano RT10 160mm (centerlock) |
| BRAKE LEVERS | Shimano MT410 Hydraulic |
| HEADSET | TH ZST No.10 |
| HANDLEBAR | Kona XC/BC Riser |
| STEM | Kona XC/BC |
| SEATPOST | Kona Thumb w/Offset 31.6mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Kona Key Grip |
| SADDLE | WTB Volt |
| FRONT HUB | Formula 110x15mm (centerlock) |
| REAR HUB | Shimano 148x12mm (centerlock) |
| SPOKES | Stainless Black 14g |
| RIMS | WTB ST i30 2.0 TCS |
| FRONT TIRE | Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6" |
| REAR TIRE | Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6" |
| PAINT COLOR | Matte Bloodstone w/ Charcoal & Nimbus Decals |
| EXTRAS | n/a |
