27.5 x 2.1 Puncture Resistant, Reflective Sidewalls
Ebike System
Motor
500w, 48v
Throttle
Aventon LH Handlebar Mounted
Display
LCD Smart "Easy Read"
Battery
48V, 12.8Ah (614Wh), LG Cell, UL 2849 Compliant
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
48V, 3 Amp Fast Charger
Lights
Front and rear lights integrated
Speed
Class 2
Brakes
Brakes
Hydraulic
Drivetrain
Bottom Bracket
Square Taper, Sealed, Torque Sensor
Pedals
9/16" Alloy Platform
Crankset
170mm w/ 48 T
Cassette
12-32T, 8 Speed
Rear Derailleur
Shimano 8 speed
Shift Lever
8 Speed Trigger
Chain
122 Link, 8 Speed
Cockpit
Saddle
Aventon Saddle
Seatpost
Forged Alloy, 30.9mm 2-Bolt Clamp
Stem
Threadless, 31.8mm, 90mm
Seat Clamp
34.9mm Quick Release
Handlebars
Aluminum 31.8mm, Sweptback
Headset
Sealed Bearing Headset
Grips
Ergonomic Comfort
Included Accessories
Kickstand
Included, rear mount
Rear Rack
Compatible
Fenders
Compatible
Miscellaneous
Suspension
None
Technical Overview

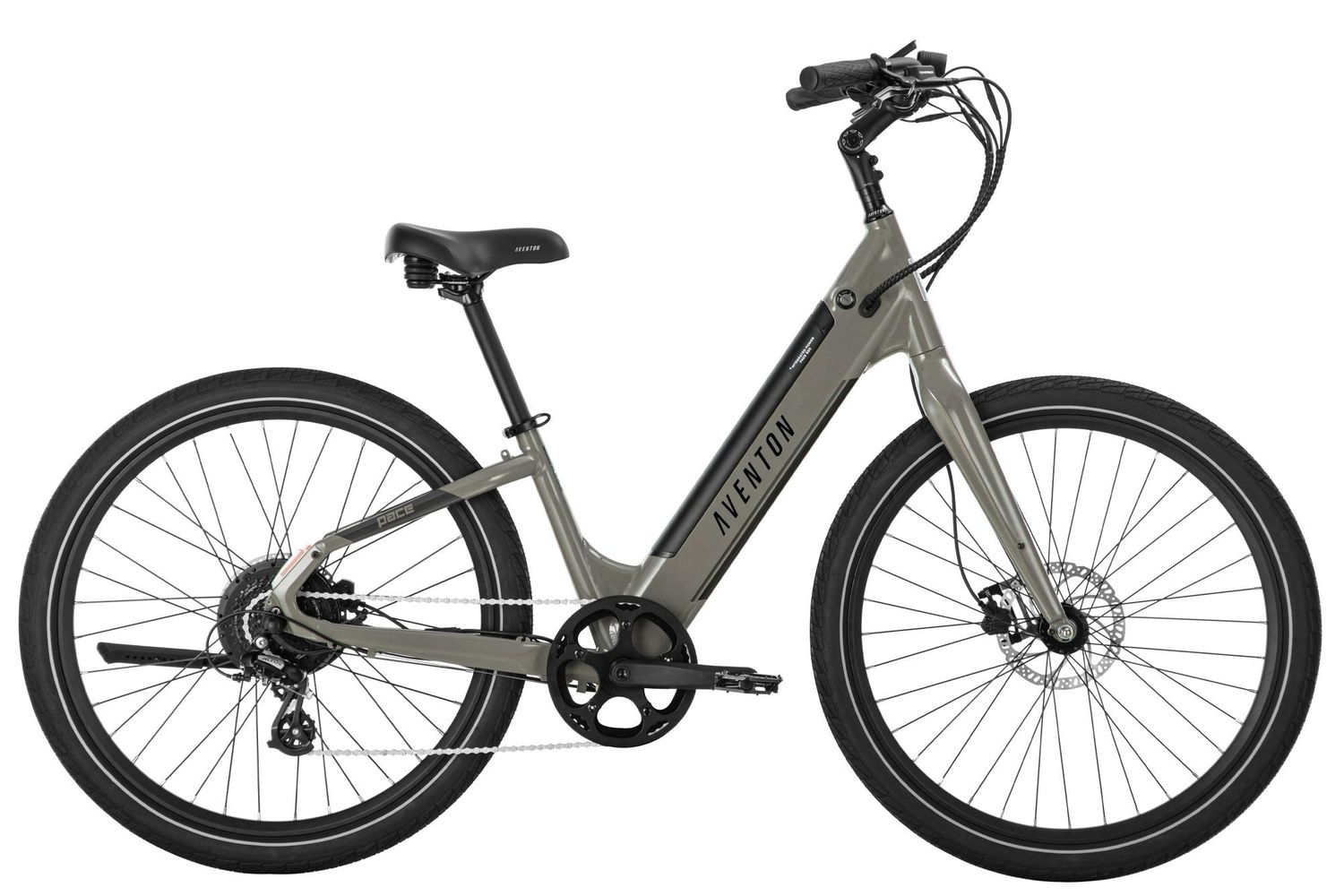

The Pace 500.3 comes out of the box as a Class II ebike, with pedal assist and throttle. It can be unlocked to a Class III ebike. The Pace 500.3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS Eco throughout flat terrain with a rider weight of 160 lb.
